Internationally renowned artist Professor Lin Xiang Xiong, through his company Space Arts & Culture (M) Sdn Bhd, aimed to realise his most ambitious vision with the Lin Xiang Xiong Art Gallery. Key to Professor’s vision is a unique turtle-shaped structure, harmoniously integrated with the Penang shoreline.

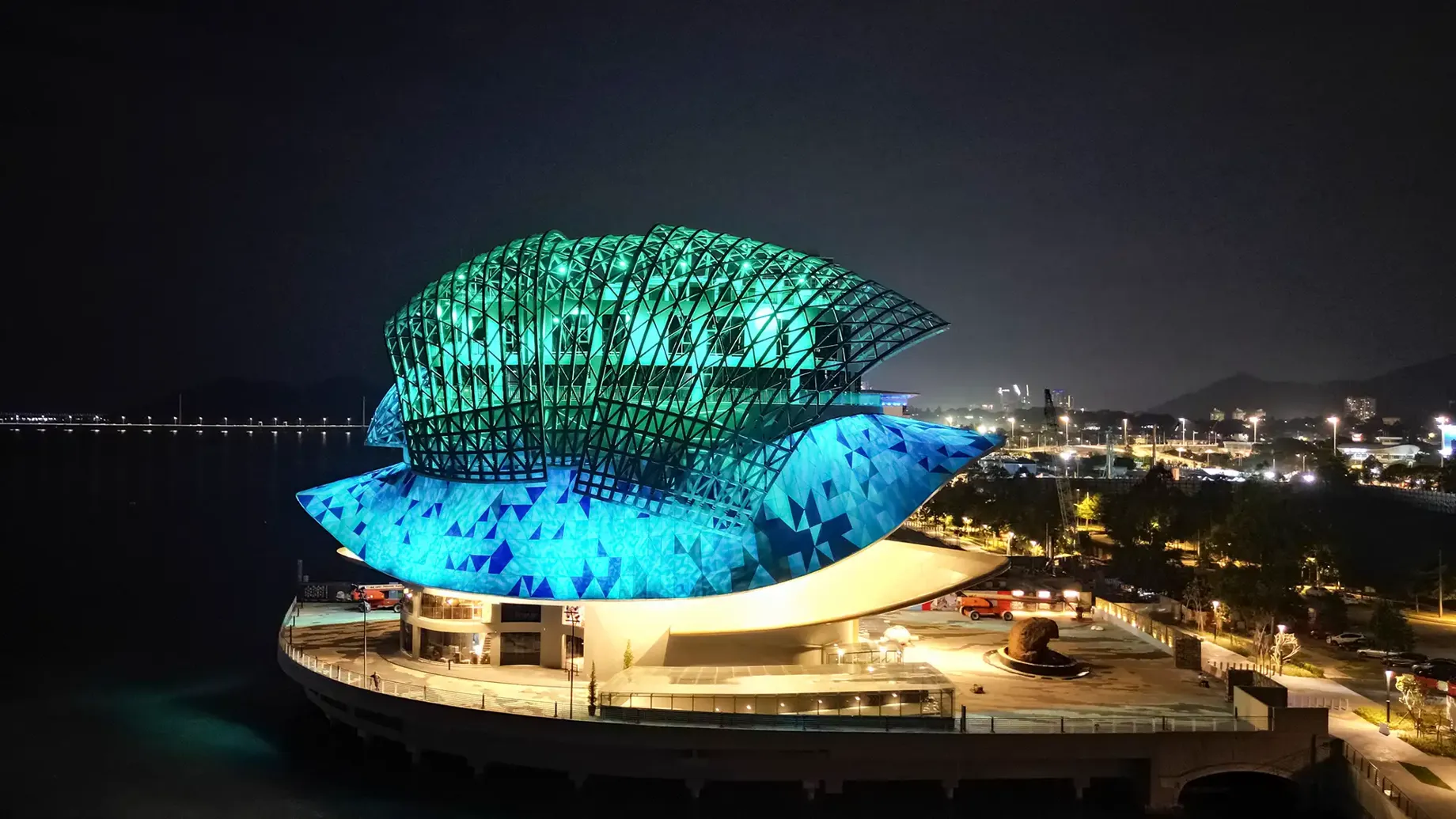

The Lin Xiang Xiong Art Gallery is located on the Penang waterfront, sitting on stilts over the open sea.  Our multidisciplinary team was engaged to bring Professor Lin’s vision to life, overcoming significant engineering challenges in achieving the turtle-shaped structure, while also developing a building that optimises time, cost and environmental impact. We provided civil, structural, geotechnical, and marine engineering services for the project.

The Gallery is one of Malaysia’s few dedicated art institutions, enhancing the country’s cultural identity with over 300 art works by Professor Lin, as well as a rotating collection of more than 1,000 pieces by Professor Lin and other international artists. It serves as a platform for global cultural dialogue, while blending art, architecture and community in a lively public space.

From an artistic concept to an architectural landmark

The gallery’s complex steel roof takes inspiration from the sea turtle – a symbol of longevity, kindness and prosperity in Chinese culture. The turtle motif is also closely associated with Penang Island, whose silhouette resembles the reptile when viewed from above.

However, this symbolic, free-form geometry introduced significant engineering challenges for our team. The unconventional shape made structural analysis and calculations far more difficult than traditional structures, requiring advanced analysis including finite element modelling to accurately predict the performance and ensure safety. The complexities also extended into fabrication and assembly, demanding exceptional precision and a tightly coordinated erection plan, as even minute deviations could have led to costly rework or safety risks.

To overcome these challenges, we used advanced computational modelling to translate the sculptural form into a buildable, load-bearing system that met the client’s vision. This included optimising the roof shape and steel members for cost and constructability, while ensuring structural integrity.

Arup played an important role in helping us translate this artistic concept into a structurally sound and elegant reality. Their professionalism and technical insight enabled the gallery’s unique architectural form to be realised while maintaining the highest standards of safety and precision.

Professor Lin Xiang Xiong

Minimising coastal impact with complex engineering solutions

Part of Professor Lin’s vision was for the Gallery to be situated at a waterfront location on the east side of Penang Island. This highly sensitive and technically demanding coastal site introduced significant coastal engineering challenges.

Our team designed stilt-based marine foundations, enabling the gallery to be built directly over the shoreline without land reclamation. By elevating the structure above the water, the seabed and natural marine ecosystems were largely preserved, reducing disruption to marine life, sediment movement and coastal hydrodynamics. It also saved more than nine months of construction time and mitigated future risks of ground settlement if reclamation was carried out.

Building on this strategy, our marine and geotechnical experts developed a specialised marine piling design capable of withstanding long-term exposure to saltwater, ensuring both durability and structural stability. The gallery is further supported by a purpose-built marine platform – a distinctive engineering feature that secures the building safely over open water and reinforces its iconic waterfront setting.

“When I first conceived the Lin Xiang Xiong Art Gallery, I envisioned a space where art, architecture, and the surrounding sea could exist in harmony. Transforming this vision into a real building requires not only creativity but also deep engineering expertise. Arup played an important role in helping us translate this artistic concept into a structurally sound and elegant reality. Their professionalism and technical insight enabled the gallery’s unique architectural form to be realized while maintaining the highest standards of safety and precision.” said Professor Lin Xiang Xiong.

The gallery’s complex steel roof takes inspiration from the sea turtle. The side view highlights the layers of the structure.

The Lin Xiang Xiong Art Gallery's roof line resembles a turtle.
